Switches

Red Max 45gf Linear Switch

Brown Max 50gf Tactile Switch

Blush Max 42gf Linear Switch

IN THE BOX

Keyboard image 1

Keyboard image 2

Keyboard image 3

PRE-BUILT KEYBOARD

1 x Halo65 V2 Keyboard（NuPhyIO driver version）
1 x 2.4G Receiver
1 x USB-C Data Cable
1 x USB-C to USB-A adapter
1 x Keycap/Switch Puller
6 x Extra Keycaps

1 x Quick Guide/Poster
(NuPhyIO Download )
1 x FAQ Download

Keyboard image 1

Keyboard image 2

Keyboard image 3

PRE-BUILT KEYBOARD

1 x Halo75 V2 Keyboard（NuPhyIO driver version）
1 x 2.4G Receiver
1 x USB-C Data Cable
1 x USB-C to USB-A adapter
1 x Keycap/Switch Puller
6 x Extra Keycaps

1 x Quick Guide/Poster
(NuPhyIO Download )
1 x FAQ Download

Keyboard image 1

Keyboard image 2

Keyboard image 3

PRE-BUILT KEYBOARD

1 x Halo96 V2 Keyboard（NuPhyIO driver version）
1 x 2.4G Receiver
1 x USB-C Data Cable
1 x USB-C to USB-A adapter
1 x Keycap/Switch Puller
7 x Extra Keycaps

1 x Quick Guide/Poster
(NuPhyIO Download )
1 x FAQ Download

Tech Specs

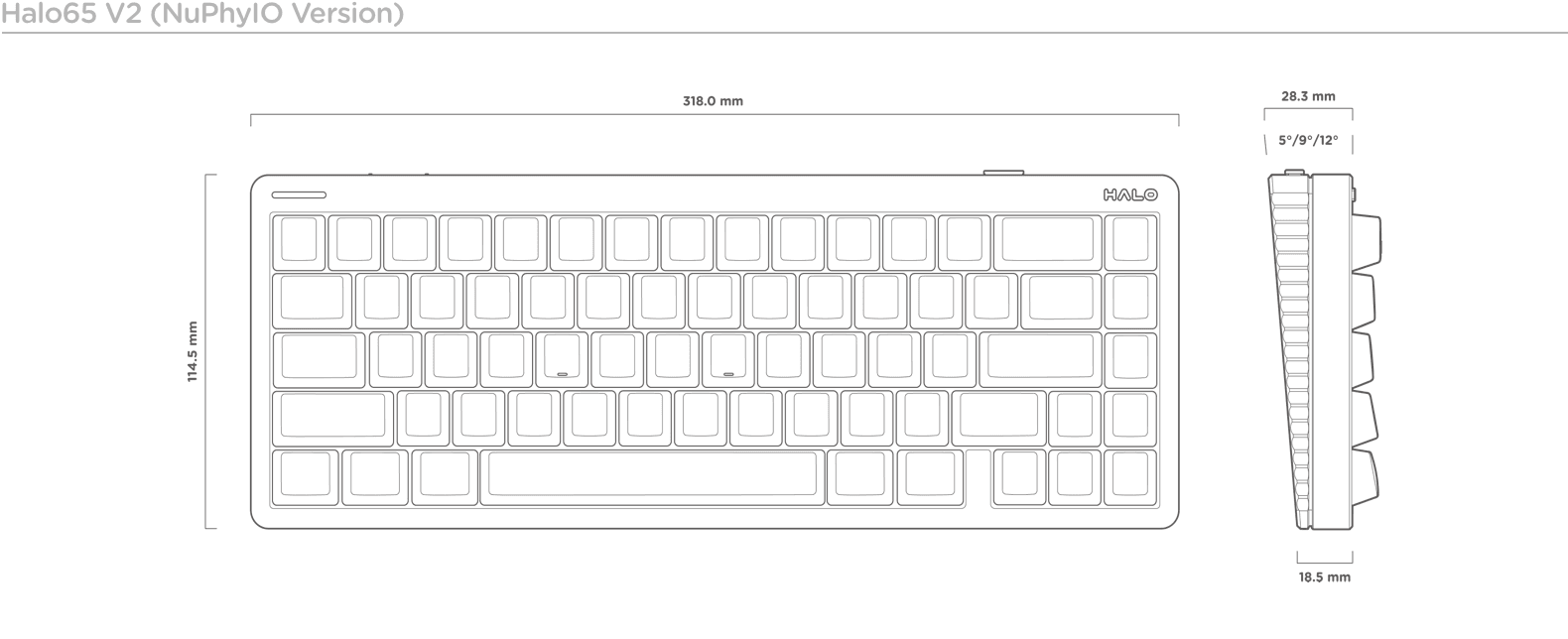

Technical specifications diagram

SPECIFICATION

Layout: ANSI 65%
Number of Keys: 67
Switch Type: High profile
Stabilizer Type: Plate Mounted
Mount Type: Gasket
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: RGB-LED Underglow
Backlight Modes: 20+
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃

CONNECTION

Mode:2.4GHz, Wired (USB-C) or Bluetooth 5.0
2.4GHz Polling Rate: 1000Hz
Wired Polling Rate: 1000Hz
Bluetooth 5.0 Polling Rate: 125Hz

MATERIALS

Top Case: aluminum
Bottom Case: PC
Plate Material: POM
Keycap Type: Double-shot

SIZE AND WEIGHT

318 × 114.5 × 18.5 mm
(12.5 × 4.5 × 0.72 inches)
Weight: 798 g (1.75 lb)
Typing Angles: 5° / 9° / 12°

POWER AND BATTERY

Battery Capacity: 4000mAh
Working Time (all lights on): 60~100 hours (lab test result)
Working Time (all lights off): Up to 1200 hours (lab test result)

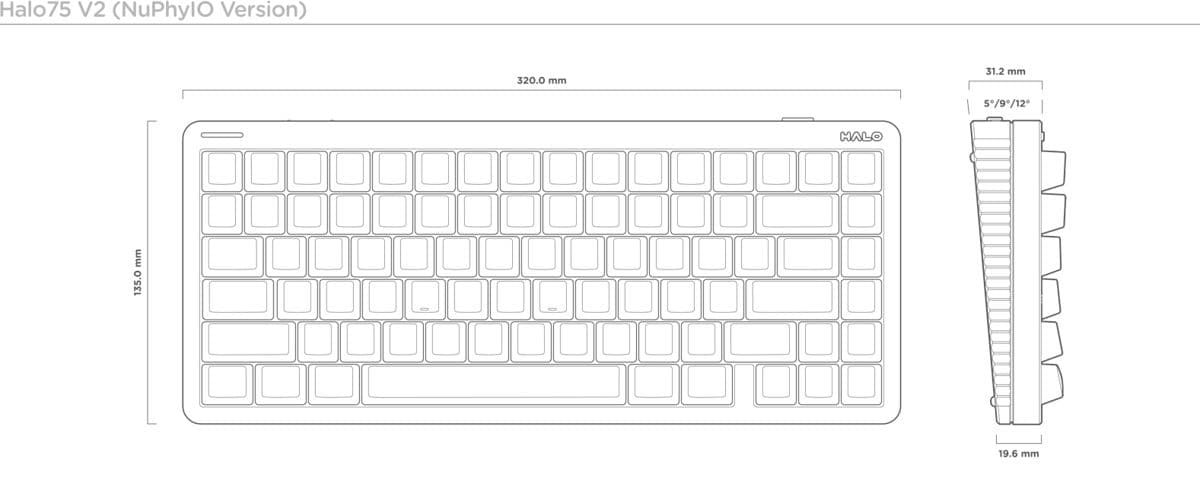

Technical specifications diagram

SPECIFICATION

Layout: ANSI 75%
Number of Keys: 83
Switch Type: High profile
Stabilizer Type: Plate Mounted
Mount Type: Gasket
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: RGB-LED Underglow
Backlight Modes: 20+
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃

CONNECTION

Mode:2.4GHz, Wired (USB-C) or Bluetooth 5.0
2.4GHz Polling Rate: 1000Hz
Wired Polling Rate: 1000Hz
Bluetooth 5.0 Polling Rate: 125Hz

MATERIALS

Top Case: aluminum
Bottom Case: PC
Plate Material: POM
Keycap Type: Double-shot

SIZE AND WEIGHT

320 × 135 × 19.6 mm
(12.59 × 5.3 × 0.77 inches)
Weight: 1028 g (2.26 lb)
Typing Angles: 5° / 9° / 12°

POWER AND BATTERY

Battery Capacity: 4000mAh
Working Time (all lights on): 60~100 hours (lab test result)
Working Time (all lights off): Up to 1200 hours (lab test result)

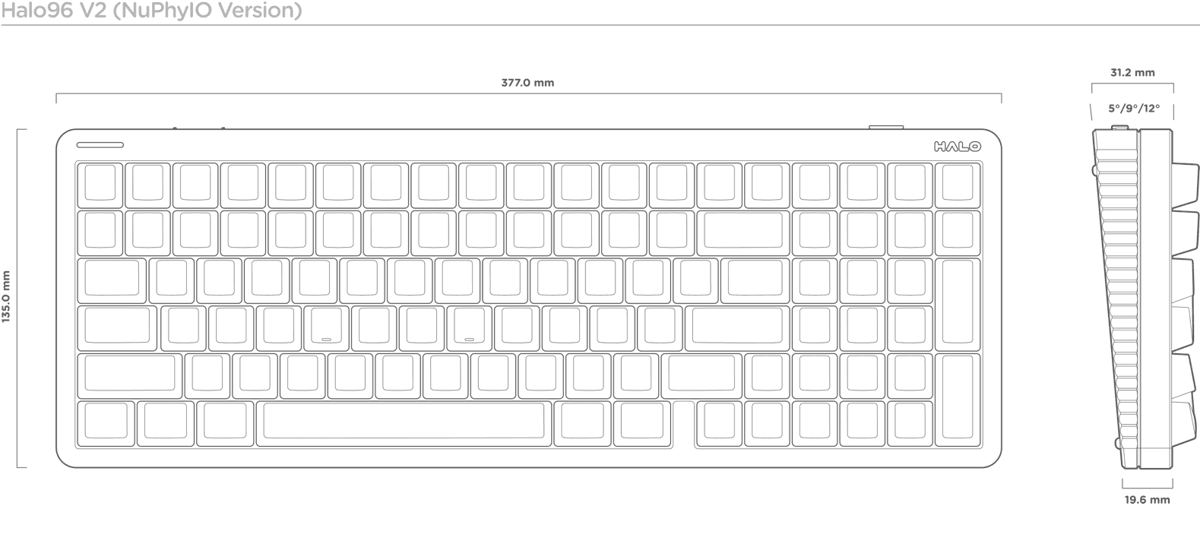

Technical specifications diagram

SPECIFICATION

Layout: ANSI 96%
Number of Keys: 99
Switch Type: High profile
Stabilizer Type: Plate Mounted
Mount Type: Gasket
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: RGB-LED Underglow
Backlight Modes: 20+
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃

CONNECTION

Mode:2.4GHz, Wired (USB-C) or Bluetooth 5.0
2.4GHz Polling Rate: 1000Hz
Wired Polling Rate: 1000Hz
Bluetooth 5.0 Polling Rate: 125Hz

MATERIALS

Top Case: aluminum
Bottom Case: PC
Plate Material: POM
Keycap Type: Double-shot

SIZE AND WEIGHT

377 × 135 × 19.6 mm
(14.84 × 5.3 × 0.77 inches)
Weight: 1196 g (2.63 lb)
Typing Angles: 5° / 9° / 12°

POWER AND BATTERY

Battery Capacity: 4000mAh
Working Time (all lights on): 60~100 hours (lab test result)
Working Time (all lights off): Up to 1200 hours (lab test result)

* Note: 1. Due to technical limitations, renderings of keyboards published by NuPhy are not accurate representations of the final products.
